Electrical Performance
Parameter |
Value |
Article No.型号 |
BNC-J3 |
Frequency range频率范围 |
0 ~ 4GHz |
Impedance特性阻抗 |
50Ω±1.5Ω |
VSWR电压驻波比 |
≤1.30 |
Withstanding Voltage耐压 |
1500V |
Rated Power额定功率 |
100W |
Connector Type接口 |
BNC male interface |
Standard引用标准 |
IEC60169-4 |
Mechanical Performance
Parameter |
Value |
Waterproof degree防水等级 |
NO |
Moisture resistance抗湿性 |
NO |
Mating cycles插拨次数 |
≥500 |

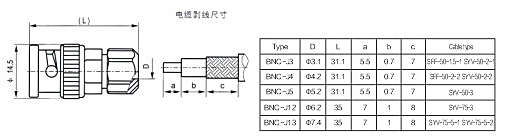

Outer Dimension外观尺寸 |
35*15mm |
Environment Performance
Parameter |
Value |
Operating temperature range工作温度 |
-30℃~+120℃ |
Storage temperature range储存温度 |
-30℃~+60℃ |
Material &Plating
Connector parts |
Material |
Plating |
Center conductor中心导体 |
Brass |
镀金 |
Outer conductor外导体 |
Brass |
Nickeling 镀镍 |
Dielectric介质 |
PTFE |
/ |
Salt Mist盐雾 |
|
48H |
Packing
Standard包装要求 |
1000pc/plastic bag in separate carton |
Remark:Dimensions are in mm with tolerance of ±2%.
